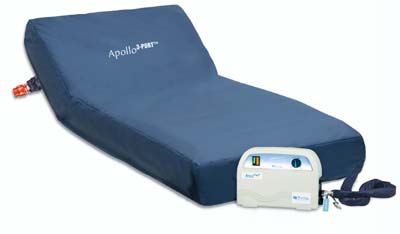

Apollo 3-Port™ Mattress System- Model 4600
Alternating Pressure Mattress System with Low Air Loss

The Apollo 3-PortTM Alternating Pressure Mattress System with Low Air Loss incorporates the features that clinicians demand for their patients in a portable system. The mattress utilizes 16 independent 8" deep air cells to provide pressure redistribution for the prevention and treatment of Stages I-IV pressure ulcers. User friendly controls and ease of setup make Apollo - 3 PortTM ideal for institutional use and the home-bound patient. The mattress is designed to fit all standard hospital beds. Apollo 3-PortTM support patient weights up to 350 lbs. Apollo 3-PortTM meets California Technical Bulletin #117 for fire retardancy. An optional fire barrier is available to meet the most stringent fire safety requirements when requested.

Bladders: Ventilated bladders include 40 air holes in sacral and torso areas to help minimize skin maceration by reducing excess moisture under patient. Air cells are constructed of (TPU) thermal polyurethane, laminated to a medical grade nylon. Dual bladder design prevents patients from bottoming out, while sitting up and will maintain air during power outages.


Cover: Vyvex-III® multi-directional stretch fabric
transfers moisture away from the patient’s skin. The cover is low shear, washable, anti-microbial, fluid resistant and fire retardant. Cover is loose fitting and will conform to the patient.


CPR Valve: CPR Valve quickly deflates mattress system for medical emergencies.

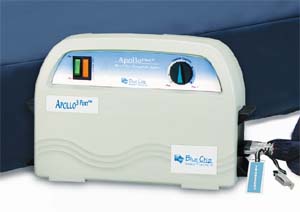

Pump Control Unit Features

•Unique 3-Port design provides continuous air flow to the 3” static air base of mattress.

•Alternating mode offers the benefit of alternating pressure therapy and reactive hyperemia. This helps to redistribute pressure well below 32mmHg.

•Control dial adjusts mattress from soft to firm for patient comfort.

•Normal Pressure Alert indicates that system is operating correctly.

•Low Pressure Alert indicates that output needs to be increased for heavier patients or accidental
disconnection of hoses.

The optional blower pump  Optional pump is available to quickly inflate and deflate mattress through CPR valve in under 4 minutes.


MODEL 4601	Apollo 3 Port ® - Pump only
Dimensions:	10.75L" x 7.5W" x 3.5H"
Weight:	6.8 lbs.
Electrical:	120V 60 hz
Listings:	UL® 544 Medical Equipment
Cycle Time:	10 Minutes
Air Flow:	7.5 Liters per minute
Current Usage:	less than 100 micro amps
Ground Resistance:	0.1 ohms maximum
Power Cord:	12 ft. cord
Construction:	ABS fire retardant UL 94V-0
WARRANTY
Pumps:	1 Year limited
Mattress:	1 year limited
Cover:	6 months limited
