If you are looking for an access solution that requires very little space or that has the ability to climb stairs our Wheelchair Lifts are the answer to your needs. Three styles are available for different applications. Not all models are rated for commercial use.

Residential and Commercial Wheel Chair Lifts from Handi-Ramp

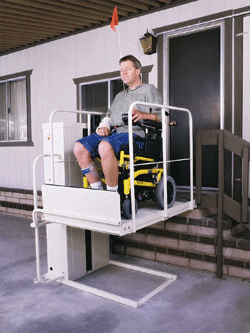

Vertical platform wheelchair lifts for residential applications are easy-to-use, safe and sturdy. Maximum load capacity is 600 lbs and the lifts can accommodate rises up to 6ft. Powered by AC current, they feature a grounded electrical system for safety. Residential Liftsare pre-assembled and are designed for easy operation by the user. Automatic access ramps and an instant reverse motor make this scooter platform lift safe for all ages and users.

Wheelchair Lifts offer a smooth, quiet ride and are virtually maintenance free. Installation is simple and all mechanics are enclosed for security. Operational under any type of weather, these electric wheel chair lifts offer a low, non-slip platform for trouble-free roll on/off.

Wheelchair Stair Lifts

Handi-Ramps HPL-50 and HPL-72 Wheelchair Stair Lifts are easy to operate, simple to install and virtually maintenance free. Every safety detail has been carefully designed into these stair lifts including a non-slip platform, constant pressure switches, a low platform for easy roll-on/roll-off, safety barrier and railing, and rolled edges.

With maximum lift heights of either 50 inches or 72 inches available, they are sturdy enough to lift and lower up to 600 pounds and will accommodate electric wheelchairs and scooters. Running on a gear box and chain, these wheelchair lifts provide a smooth and quiet up and down ride, requiring little maintenance.

The HPL-50 and HPL-72 wheelchair lifts were built to fit and use in almost any residential situation and condition. Using common household current, the drive system operates in all weather conditions, from -30 degrees to +120 degrees. With a key-operated, constant pressure switch, this stair lift enables you to start, stop and change directions at any point. The electrical system is placed well above ground and sealed against moisture, and the lift is finished with a powder coated finish, to help protect it against the elements.

Click here to view HPL-50 schematic

Click here to view HPL-72 schematic

Compared against the competition, the HPL-50 and HPL-72 lifts are tough, safe, and affordable lifts. You will not find better built products on the market for your money.

Handi-Ramp's HPL-50 and HPL-72 Wheelchair Lifts are shipped fully assembled and install in 6 easy steps.

Features

* Outdoor or indoor installation
* Plugs into Household Current (110 volt AC)
* Easily installed
* Weather proof
* Space efficient
* Virtually maintenance free
* 1-year Warranty
* Manual Back-up Crank System

Specification

* Lifting height 50/72 inches
* 600 lbs. Capacity
* 90 Degree Exit Platform

Additional Info

* Call/Send Switches
* Safety Pan
* Solid Side Panels

Shipping Info

* Call for Shipping Information
