We are authorized dealer of Burke Bariatric.  Most of the information found on this page can be found at:  http://www.BurkeBariatric.com

Welcome To BurkeBariatric.com



Bariatric Hospital Beds Graphic
TF2 in Oasis Beige




Burke, Inc. has been specializing in
Bariatric | Heavy Duty | Hospital Beds since 1979.

Here at Burke Inc. we manufacture Heavy Duty Bariatric Hospital Beds, Bariatric Transport Air Mattress System, Impulse Drive System, Accu-1000 Scale System, Bariatric Equipment including Bariatric Wheelchairs and Scooters.

Burke, Inc’s newest heavy duty bariatric bed frame is the Tri-Flex II.
The Tri-Flex II features:
----- 1,000 LB capacity
----- static & transfer
----- 2 patient surface widths in one frame
----- provids all positions
----- fully electric with battery back up
----- unique “Fold & Roll” design for easy delivery and set up
----- integrated scales and full frame trapeze options
----- patient egress from the foot of the bed capability

Burke "Impulse Drive" System
Allows Safe and Easy Maneuverability through Variable Acceleration & Positioning.
Able to make small positioning corrections in the room with ease. Moves bed down the hall at a walking pace or less at driver’s discretion.
Will stop immediately yet gently by removing thumb/finger pressure off the joy stick.
Easily maneuvers in and out of doorways, elevators, turns, etc.
Safer for staff - reduce need for dangerous transfers and expensive cumbersome lifts.
Save staff time - no combing the facility for 4-6 nurses to move a 1,000 lb. patient and bed through the facility or risk injury transferring to wheelchair.

Products

Tri-FlexII

Tri-FlexII Air Mattress

TriLift

Barri-Float Foam Mattress

Impulse Drive

Accu-1000 Scale

Power Wheelchairs

Power Scooters
Burke Inc.

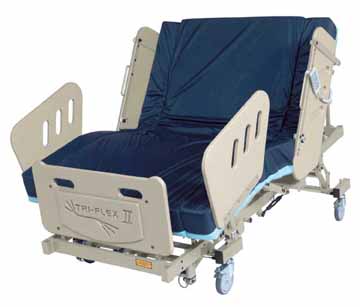

TRI-FLEX II™
Tri-Flex II™ Burke Bariatric
Hospital Bed
[Printable Version]

For More Options View Brochure Above


Tri-FlexIIBeige
MULTIPLE FEATURE, HIGH PERFORMANCE
BARIATRIC PLATFORM
1,000 lb. Capacity!

Dimensions
--Platform: 37” Width x 86” Length
--48” Width x 86” Length
--54” Width x 86” Length

Frame: 93 7/8” Long
--40 3/4” Wide Caster to Caster

Class: Fully Electric: Modular Electronics
--37” Patient Surface Width for Transport
--48” Patient Surface Width for in room use
--54” Patient Surface Width for in room use

UL 60601-1 / IEC 60601-2-38 and CE Mark
Capacity: 1000 lbs.

Misc: Hospital Grade Plug
--Low Voltage/High Efficiency
--(Low Power Consumption 1.6 amps)
--Heavy Duty 6” x 1 1/4” Steer & Lock Casters



TFIILogo

1,000 lb. Capacity - Static & Transfer
2 Patient Surface Widths in One Frame
3 Piece Interchangeable Width Mattress
“Fold & Roll” One Person Delivery System
Integrated Scale System Option
Exit/Enter at Foot of Bed Option
Expansion/retraction to 54” width
Fold Down Foot Rails
Plexiglas Windowed, Rotating Head Rails
Narrower Frame for improved doorway clearance

1 Button Trendelenberg functions
Improved Trapeze efficiency with enhanced patient access

New, Streamlined Dual Passage Assist
Impulse Drive System

Multiple Positions:
Trendelenberg / Reverse Trendelenberg
Hi-Lo: 14” to 28”
Cardiac Chair Positioning
Independent Head & Knee Positioning
Integrated Scale System
Compact “Fold & Roll” 1 person delivery system

3 Widths in 1 Frame 37” to 48” or 54”
easy slide, expand/contract
3 & 4 Corner Trapeze Frame Setup
Impulse Drive System
Attendant Control
Angle Indicators
Battery Back-Up
CPR Release Mechanism
Easy Patient Egress at Foot or Side of Bed



tf2head
Durable Molded Reinforced Plastic Head and Foot Boards
tf2scale

Easiest to use Menu Driven Interface Scale
tf2loadcell

Load Cells - Specifically Positioned For The Most Accurate Bed Scale System
tf2comp

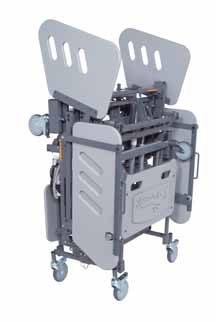

Compact,
“Fold & Roll”,
1 Person Delivery
System
“Fold & Roll” Dimensions
----Width - 32”
----Height - 74 1/2”
----Length -46 1/2”
----(Hand Rail to Hand Rail)
tf2rail

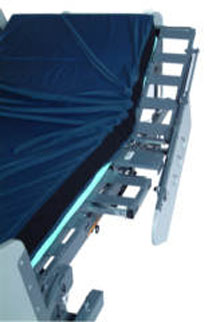

Patient Surface Width Panel Extends
To 48” or 54”

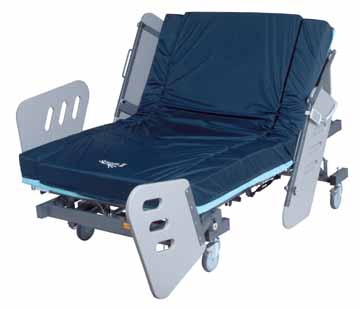

Easy Patient Egress
tf2egress


EASIER SAFER DOWNWARD TRANSFERS
The ultra low 14” deck height provides easier, safer into bed downward transfers for classic, short morbid obese patients.

The Tri-Flex II Deck is a “critical” 5” lower than the 19” deck of many bariatric beds, yet has the ability to adjust to a 28” deck height providing a safer, easier out of be downward transfer for the taller patient as well.

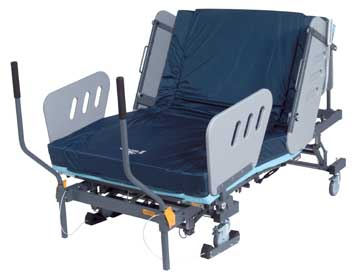

 STREAMLINED
DUAL PASSAGE ASSIST OPTION
tf2assist
Help your patient In and Out of the Foot of the Bed with the Dual Passage Assist option. Designed specifically for the Burke Tri-Flex II, this unique system enhancement provides the option of exiting or entering the bed through the foot end, encouraging greater patient mobility.




3 or 4 Post Capability In One Trapeze System

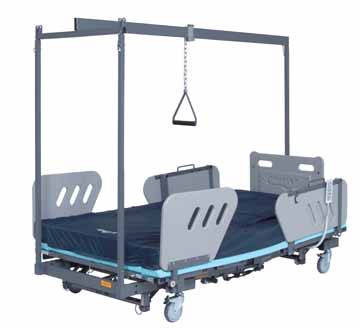

3 POST - 425 LBS. MAX CAP.
tf2trap3
IMPROVED PATIENT ACCESS WITH 3 POST SYSTEM

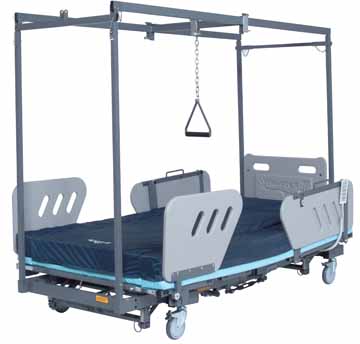

4 POST - 450 LBS. MAX CAP.
tf2trap4




The Tri-Flex II Bariatric Bed provides smooth, safe transport of patients up to and including 1,000 lbs. Designed specifically for the maximum in stability and safety, providing dependable support to both patient and staff.
Burke Inc.

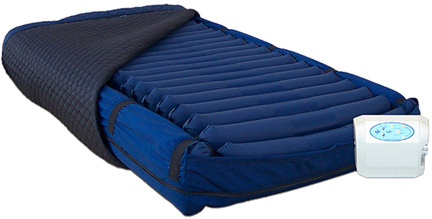

NEW-TRI-FLEX II AIR™
Revolutionary Bariatric Transport Air Mattress System
[Printable Version]


large product photo
1,000 lb. Capacity!



• 1,000 lb Capacity - Alternating Pressure - Low Air Loss Mattress System
• Quick, Push Button, Width Adjustment for
Transport and Patient Care 37” - 48” / 54”
• Mattress Maintains Air Support During Transport
and Power Outages
• Separate Top Chamber System for True Low Air Loss
• Microprocessor Controller with Multiple A/P Cycle
Times and Automatic Pressure Adjustment

• Anti Sheer Cover is Vapor Permeable for Heat and
Moisture Reduction. (Separate Vapro Permeable
Top Chamber is Removable for Easy Cleaning)
• 21 Maximum Conformity Comfort Cells with
Foam Support Layer
• Rapid CPR Disconnect
• Complies with U.S. Standard 8.6” Side Rail
Height Requirement
• Automatic Fowler Boost and Maximum Inflate Mode




Quick Push Button Width Expansion 37” to 48”. Easy disconnect narrows mattress in seconds. Unique mattress support system maintains patient comfort & support settings while transporting patient throughout facility or during a power failure.

Use in Emergency Evacuation Plan to move patient without the need to find extra staff. Use with our Ultra Maneuverable Mid-Wheel Impulse Drive to reduce number of dangerous transfers and lifts.

21 individual Dual Layer Cells provide maximum conformity and comfort for any individual’s body shape and size.

Easy to use microprocessor controller is efficient & quiet. Choose from 10 adjustable pressure
settings or static mode for transport, transfer and nursing procedures.

Alternating pressure mode is fully adjustable to patient needs with 5/10/15/20 min cycle times and 10 pressure settings for reduced interface pressure. True low air loss top chamber for maximum
patient comfort and reduced maceration during alternating pressure or static mode.

Ultra low shear top layer coverlet is zipper sealed, water proof, vapor permeable, antimicrobial, and fire retardant for maximum patient protection and comfort. Removable chamber for easy cleaning.

Anchor layer anti-slip base with 10 tie downs. Base has 3/4” closed cell foam pad which securely locks the air cells in proper position to prevent patient from bottoming out. Cells remove easily for cleaning and maintenance.

Safety Features: Rapid CPR disconnect. Audiovisual power off and low pressure alarm.
All functions can be locked out.

Controller
Air Output (L/M)
Pressure Range (MMHG)
Cycle Times (MIN)
Dimension & Weight
Power
Conforms to UL 60601-1, CAN / CSA 601.1 & CE
Matress L / W / H

 50 Liters Per Minute (Fills Mattress in 2 min.)
7 - 32 MMHG
5, 10, 15 & 20 Minutes
18” x 16” x 11” 16 lbs.
120v AC / 60hz or optional 220v / 50hz

86” x (37” / 48” / 54”) x 7”
